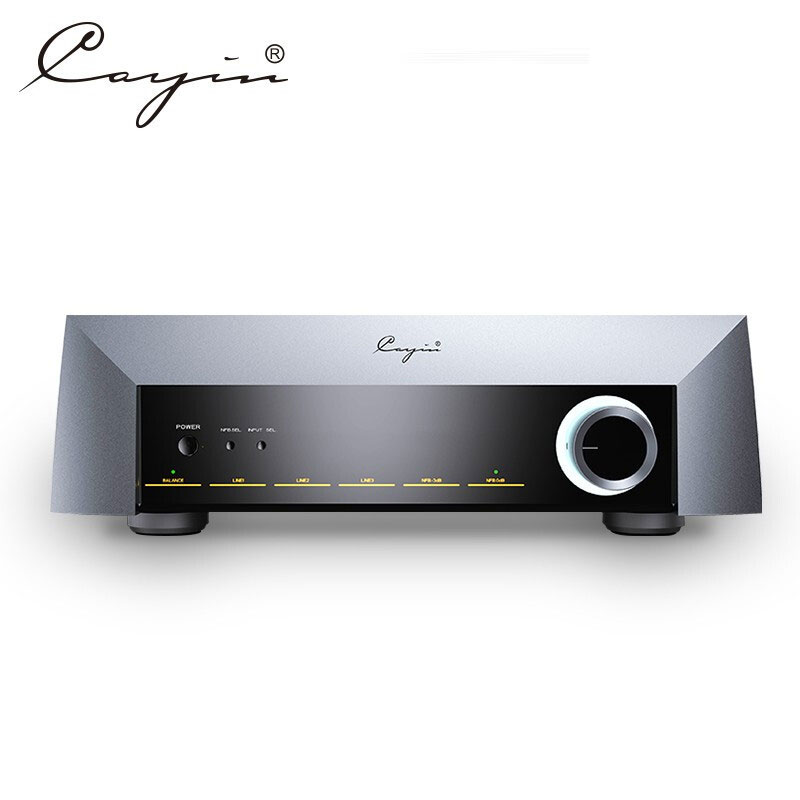

Cayin M-11LS Vacuum Tube Preamp Preamplifier Pre AMP XLR Input Output

Rating: 5.0 | 0 reviews | Write a review

Model: Cayin M-11LS

Shipping Weight: 24Kg Product Quantity: 9 Units in Stock

$3,525.99USD $3,325.99USD

Ship to: Shipping Costs : $213.60USD

Bluetooth:

With Bluetooth

Add to Cart:

Features
1.Noble and elegant appearance, with the same style of opera series
2.High-quality EI power transformer, using high and low voltage independent dual power supply design to reduce mutual interference
3.Linear amplification adopts selected matched FULL MUSIC ceramic gold foot 6SN7 electron tube
4.It adopts Russian SOVTEK 5AR4 rectifier tube for rectification, and EH6V6GT electron tube acts as a high-voltage regulator circuit, cooperates with choke coil input circuit, eliminates the interference of external noise sources, and provides a pure power supply to the linear amplifier circuit
5.Adopt Japanese TAKMAN carbon film fever level resistor, noble sound, natural and delicate sound
6.Multicap, SCR high-grade coupling capacitors
7.Provide XLR sockets for professional equipment, and transmit music signals as balanced signals, free from external interference
8.High-grade aluminum alloy remote control

Technical Parameters
Output voltage: 2V
Gain: 14dB (1KHz)
Frequency response of the whole machine: 6Hz ～ 110KHz (-3dB)
Harmonic distortion: 0.2% (1KHz)
Signal to noise ratio: 96dB
Input sensitivity: RCA: 430mV, BALANCE: 860mV
Input impedance: 100KΩ
Output impedance: 400Ω
Power supply voltage: ~ 220V ± 5% 50Hz
Total power consumption: 70W
Use vacuum tube: FULL MUSIC 6SN7X4, SOVTEK 5AR4X1, EH6V6GTX1
Input terminals: BALANCE, LINE1, LINE2, LINE3
Output terminals: BALANCE, RCA OUT1, RCA OUT2
Product volume: 460mm × 437mm × 147mm (W × D × H)
Net weight: 18kg
