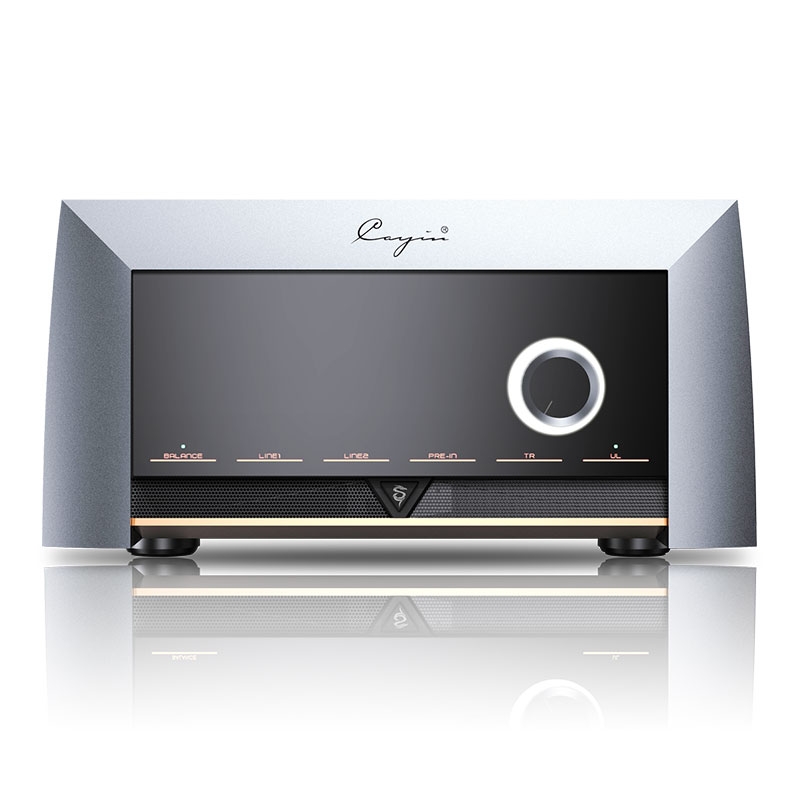

Cayin M-52T MK2 Vacuum Tube Integrated Amplifier AMP TR/UL Mode Max 80Wx2

Rating: 5.0 | 0 reviews | Write a review

Model: Cayin M-52TMK2

Shipping Weight: 55Kg Product Quantity: 10 Units in Stock

$4,175.99USD

Ship to: Shipping Costs : $444.38USD

Voltage:

220-240V

Add to Cart:

Hand-made construction with the finest point-to-point wiring.
Two EI output transformers with wide bandwidth are applied.
Specially designed toroid transformer for power supply.
High-grade gold-plated porcelain tube socket is used to raise reliability of connection.
Japanese Audiograde Takman Carbon Film resistors have been used in key locations of the circuits for better sound quality.
6SN7 vacuum tube is used in the preamp stage.
12AX7EH、12AU7EH and 6CG7 tubes are used in the preamp stage.
Eight pieces of KT88EH(EL34EH) tubes are used for AB1 push-pull amplification.
Triode and Ultralinear selection.
External user BIASADJ.and BIAS METER are applied.
External Tube Selection Switch between EL34 and KT88 on the rear panel for easy tube replacement.
Equipped with remote control.
Can be used as a Power amplifier.
Soft start function (about 30 seconds).
M-52T MK2 can memorize last operation of the unit once turned off.
Output Level will attenuate automatically for Blanced Input.
High-quality Japanese ALPS motor potentiometer.
Thickly silver-plated signal cable has been used.
Equipped with easily-installed tube cover for protection.

SPECIFICATION
Model: M-52TMK2
Power Output: TR:48W+48W (RMS Triode mode) UL:80W+80W (RMS Ultralinear mode)
Frequency Response: 10Hz～60kHz (-1.5dB)
THD: 1%(1kHz)
Supply Voltage: ～220V±5% 50Hz
Power Consumption: <480w
S/N Ratio: 94dB
Input Sensitivity: 380mV (Integrated) 1000mV (Pre-IN)
Dimension: 480mm×572mm×252mm(W×D×H)
Net Weight: 50kg
Output Impedance: 4Ω，8Ω
Input Impedance: 100KΩ
Tube: KT88EH×8、6CG7×2、12AU7EH×2、12AX7EH×1
Input Terminals: BALANCE, LINE1,LINE2,PRE-IN
