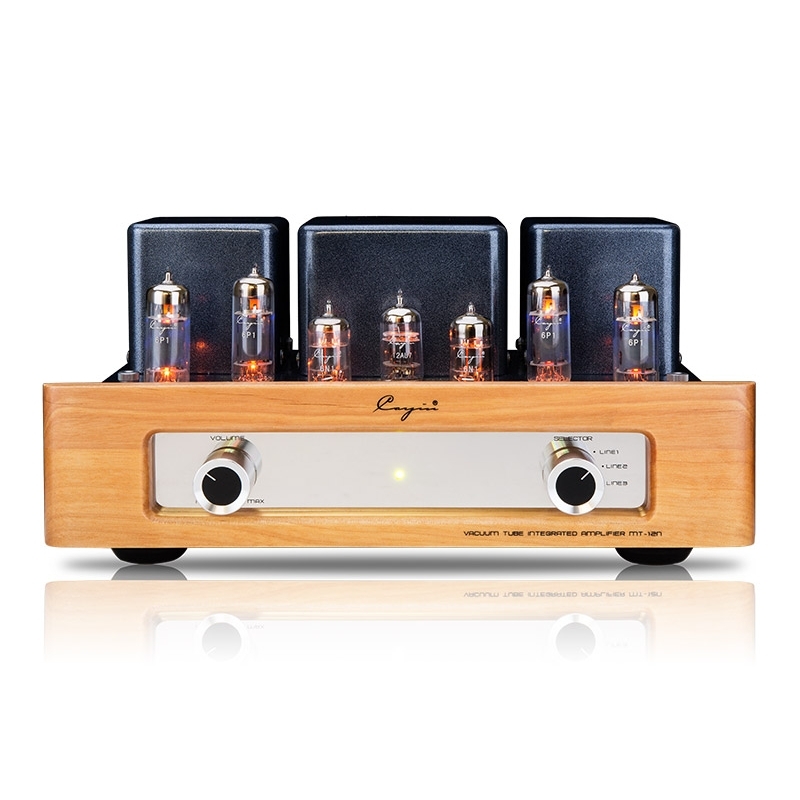

Cayin MT-12N Tube Integrated Amplifier Vacuum Tube 6P1x4 Class AB1 Push-Pull Amplifier 9W*2

Rating: 5.0 | 0 reviews | Write a review

Model: Cayin MT-12N

Shipping Weight: 10Kg Product Quantity: 9 Units in Stock

$435.99USD

Ship to: Shipping Costs : $124.80USD

Voltage:

220-240V

Add to Cart:

ayin MT-12N vacuum Tube amplifier integrated audiophile AMP，with tube protective cover.
100% Brand New
The price is for one set of HiFi audio vacuum Tube integrated Amplifier .

Features:
Pure electronic tube, Pure handmade
Two high quality wide frequency response EI output transformers
Use a ring-shaped power transformer specially developed for this amplifier
The voltage amplifier stage uses a 12AU7, and two 6N1 are responsible for the left and right channel signal inversion and drive amplification respectively.
Power amplification uses four select paired 6P1 vacuum tubes for AB1 push-pull power amplification
Japanese ALPS high quality potentiometer
Easy to install plug-in vacuum tube protective cover

Specification:
Name/Model: Cayin MT-12N Amplifier
Output power: 9W+9W
Power consumption: 80W
Frequency response: 10Hz ~ 35kHz (-3dB)
Harmonic distortion: 0.5% (1kHz)
Output Impedance: 4Ω, 8Ω
Input impedance: 100kΩ
Signal to noise ratio: 86dB
Input sensitivity: 260mV
Power supply voltage: AC 220V±5% 50Hz
Use the electron tube: 12AU7×1, 6N1×2, 6P1×4
Dimension: 330×245×160mm (W×D×H)
Net weight: 8.3kg
Gross weight:9.3kg
