Line Magnetic LM-609IA Tube Integrated Amplifier 300B2 Vacuum Tube Class A Single-ended Power Amp8W2

Rating: 5.0 | 1 reviews | Write a review

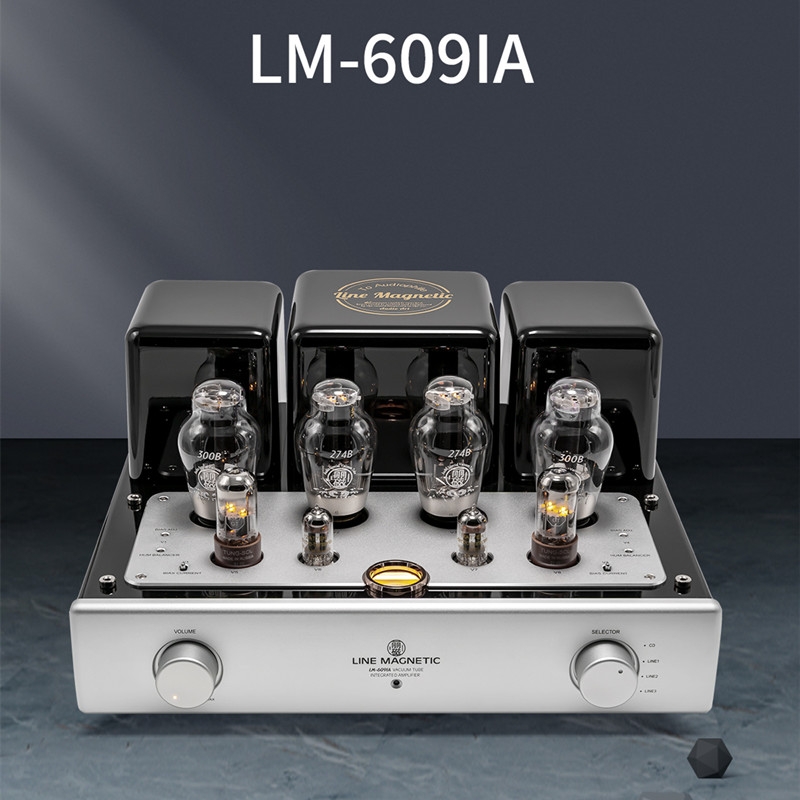

Model: Line Magnetic LM-609IA

Shipping Weight: 41Kg Product Quantity: 8 Units in Stock

Starting at: $2,755.99USD

Ship to: Shipping Costs : $353.71USD

Packing:

Voltage:

220-240V

Rmote Control:

Yes

Add to Cart:

Product features:
●Eight watts per channel, Single Ended design, Pure Class A Integrated Stereo Amplifier
with 300B output power tubes.
●All tube Integrated with 12AX7 input tubes, 310A driver tubes and 300B output tubes.
●4 pairs of input and speaker terminals for 4, 8 or 16 ohm speakers are located on the
back panel.
●One Meter with two pointers is located in the middle of front faceplate to allow you to
monitor the power output of each channel.
●One piece of specially designed big power EI transformer for power supply and two
pieces of Single-ended EI output transformers with wide bandwidth are applied.
●Japanese Audio grade ALPS volume potentiometer has been applied.
●Standard with remote control for volume control and muting operation.
●Hand made construction with the finest point-to-point wiring.
●Easily installed tube cover for better protection.

Specification:

－THD：1%（1kHz）
－Frequency response：10Hz～50kHz（-1.5dB）
－S/N Ratio：87dB(A weighted)
－Input Impedance：100kΩ
－Output impedance: 4 Ω, 8 Ω, 16 Ω
－Input Sensitivity：400mV (Integrated) 1000mV (Pre-IN)
－Tube Complement：12AX7×2、310A×2、300B×2、5U4G×2
－Dimension (WxDxH)：380mm x 405mm x 345mm
－Net weight: 30kg
－Power Consumption: 190w
－Working conditions: temperature: 0 ℃ to 40 ℃ Moisture: 20% ~ 80%
－Storage conditions: temperature: - 20 ℃ ~ 70 ℃ Moisture: 20% ~ 90%
