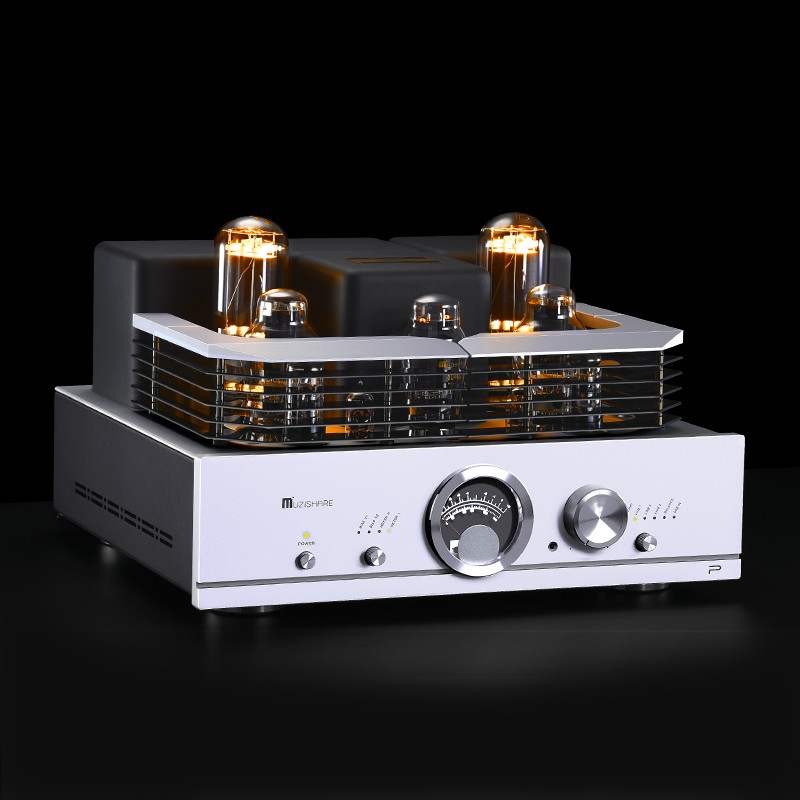

MUZISHARE R100 300B push 845 211 805 Single-ended Class A Integrated Amplifier & power Amp & Phono amplifier

MUZISHARE R100 300B push 845 211 805 Single-ended Class A Integrated Amplifier & power Amp & Phono amplifier

Rating: 5.0  |  1 reviews |  Write a review
Model: MUZISHARE R100
Shipping Weight: 48Kg Product Quantity: 10 Units in Stock
$1,985.99USD

Ship to: Shipping Costs :

:


:


Rmote Control:


Tube cage:


Add to Cart:
2021 Muzishare just released R100 805 latest version， the updates are:
Replace old standard 805/300B/5U4G tube by some special customize replica vintage WE 805/300B/5u4g tubes， it's get a sinification upgrade about the sound quality with a quieter background. using same metals than replica West Electric tube, 300B and 5U4G(274B) are black paltes, 805 Tubes come without high voltage cable
Replace the stadard preamp tube by JJ ECC83 and EH6SN7 ，
Add a infrared remote control,
Upgrade the inside circuit design, and replace with high precision resistor
Upgrade the top quality chock with z11 iron with fully shielded and single crystal copper

Features:
1.The whole panel is made of 14mm aerospace solid aluminum wire drawing. The knob is made of full solid aluminum high-gloss car. The signal switch on both sides adopts Japanese knurling technology, and the hand damping is very good. High-precision multi-function output power meter and ammeter, backlight black The bottom is specially made of film. The back of the dial is set with dozens of LED lamp beads, the double structure chassis base, the outer layer is laid with 3mm brushed aluminum plate, and the inner layer is made of 2mm thick steel plate.

2.The R100 power switch key is placed on the left side of the panel; the side knurling knob has built-in 4-speed dedicated functions, namely BIAS V1, BIAS V2 and METER H, METER L, to adjust the power tube V1, V2 bias current selection and level meter sensitivity. Damping selection. The right side of the meter head is the volume adjustment knob, which uses a high-precision ALPS potentiometer specially designed in Japan. The right-hand knurled knob is a 6-speed source input selection file, which are PHONO (single release), lin1, lin2, lin3, BALACNCE (balanced). ), PRE IN (pure power amp)

3.R100's high-voltage power supply and filament power supply independently use two Z11 iron core high-efficiency power supply cattle, the output transformer uses two Z11 iron core wide-band EI single-ended output cattle, all powered separately.

4.The R100 filter circuit uses 12 1500uf 600V Japanese Nichicon large hydrothermal capacitors and two specially designed chokes.

5.The R100 not only has the full analog amplification function of the vacuum tube power amplifier, but also puts the enthusiast's favorite vinyl singing function into it. The MM cartridge input R100 also has pure post-level function. The R100 has three sets of analog audio inputs, one group sings. Head input, a set of pre-stage inputs, and also a set of balanced input BALANCE ports, this is a true balanced input, R100 output has 4 ohms, 8 ohms and 16 ohms respectively, support all impedance speakers.

6.MUZISHARE is one of best chinese hi-fi equiment production manufacturer, Their products have past Certificate of Conformity European(CE)

300B Drive 805 Amplifier:
The sound field is wider, Magnificent and Overwhelmed bass, Pound the heart , and also same than 211, 845 tube amp, have some superior analytical power, rich flavor, delicate and high density sound , full of moisture and transparent

Technical Parameters:
1.Rated output power: 50W + 50W
2.Input : PHONO, lin1,lin2,lin3,Balance ,Pre IN
3.Output Impedance: 4Ω 8Ω 16Ω
4.SNR: 92dB
5.output balance of the left and right:
6.Input Sensitivity: 1000mV (pre in)
7.Harmonic distortion: 1% (1kHz) Frequency Machine: 15Hz ~ 30kHz (-1.5dB)
8.Net weight: 42KG
9.Package weight: 48KG
10.Power consumption: 450W
11.Preamp tube: JJ ECC83(12AX7) × 2 , EH 6SN7 × 2
12.Drivertube: 300B × 2 (special customize black plate , same quality than replica WE300B)
13.Power tube : 805 x2 (special customized, same quality than replica WE805)
14.Rectifier: 5U4G × 1 (special customize black plate , same quality than replica WE274B)
15.Dimension:(W × D × H):430*435*265mm
