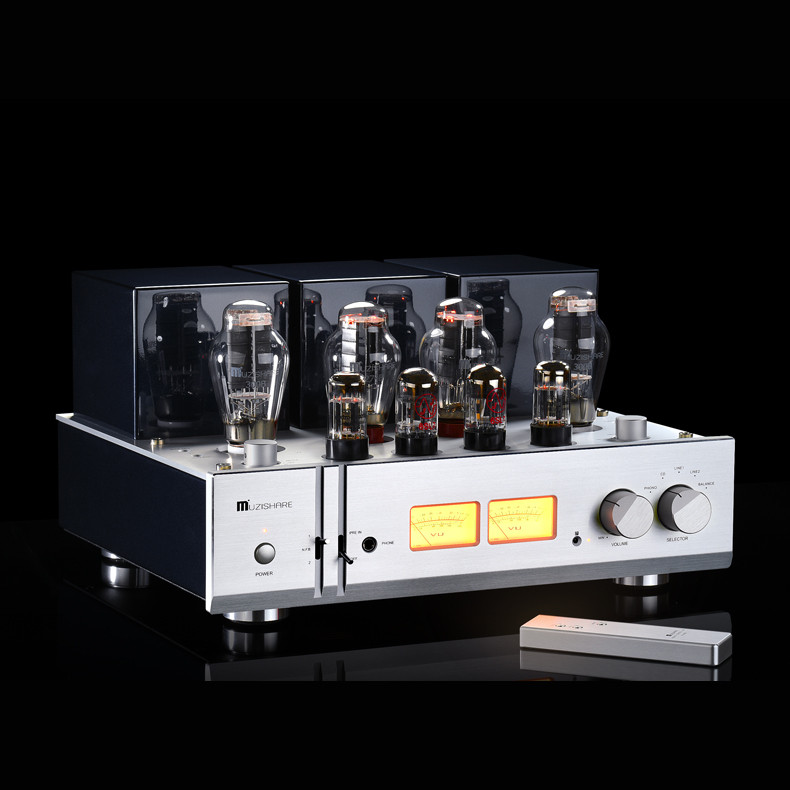

MUZISHARE X9 HI FI Integrated Amplifier Single-ended Class A Vacuum Tube 300B Tube Amp

Rating: 5.0 | 0 reviews | Write a review

Model: MUZISHARE X9

Shipping Weight: 38Kg Product Quantity: 7 Units in Stock

$1,535.99USD

Ship to: Shipping Costs : $328.05USD

Voltage:

Rmote Control:

Yes

Tube cage:

Yes

Add to Cart:

Features of this machine
1. Purely handmade, the whole machine adopts scaffold welding
2. Use two high-quality, wide-frequency response and high-sound quality Japanese EI output transformers
3. Use high-power Z11 iron core toroidal power transformer specially designed for this machine
4. The high-voltage part adopts 2 Dawning 274B for full rectification
5. The first stage uses two JJ 6SL7 and 6SN7EH vacuum tubes, and the latter stage uses two 300B vacuum tubes for class A single-ended power amplification.
6. Peripheral power tube current adjustment knob and current display and dynamic output level UV meter
7. Choose Japanese ALPS motor potentiometer, use German Mondolfo M-CAP fever capacitor
8. Boot mute delay function (about 30 seconds)
9. Infrared function remote control
10. Easy-to-install pluggable vacuum tube protective cover

Technical Parameters
Rated output power: 8W + 8W (RMS)
Harmonic distortion: 1% (1kHz)
Whole machine frequency response: 10Hz ~ 50kHz (-1.5dB)
Input sensitivity: 150mV(0db) 260mV(-3db) 420mV(pre in)
Input impedance: 100KΩ
Output impedance: 4Ω 8Ω 16Ω
Signal to noise ratio: 92dB
Whole machine power consumption: 155W
Left and right output balance: <1db
Use vacuum tube: 6SN7x2. 6SL7x2, 300bx2, 274Bx2
Overall size (WxDxH): 430mm x 393mm x 236mm
Power supply voltage: ~ 110V/220V+5% (50Hz)
Working conditions: Temperature: 0°C~40°C
Humidity: 20%~ 80%
Storage conditions: Temperature: -209C~ 70°C
Humidity: 20%~90%
Weight: 35kg

The vacuum tube model used in this machine Replace the vacuum tube model
6SL7: 6N9, 6H9C, ECC35, 6SC7, 6CY7
6SN7: 6N9P, 6H8C, 6H8M, 6F8G, CV181, QB65, ECC32
300B: WE300B, 4300A
274B: 5Z4P, 5BX1, 5U4C. GZ30, 5Z4G/GT
