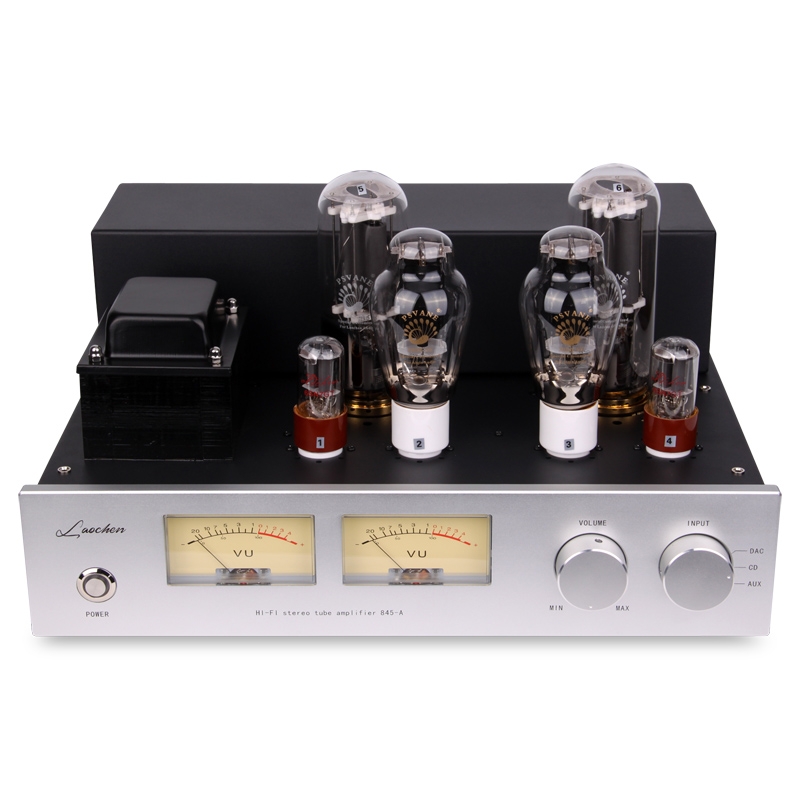

OldChen 845 Tube Amplifier LaoChen Single-Ended Class A 300B 6SN7 driver Lamp Amp

Rating: 5.0 | 1 reviews | Write a review

Model: OldChen 845

Shipping Weight: 32Kg Product Quantity: 9 Units in Stock

Starting at: $979.99USD

Ship to: Shipping Costs : $276.73USD

Voltage:

Version:

Tube cage:

Yes

Add to Cart:

Parameters:
Preamp tubes: 2 x Special customize 6SN7(grey plate) or 6SN7-SE (Gold pins, black plate)
Driver tube: 2x Special customize 300-SE or 300-SEN (both with gold pins, black plate)
Power tubes: 2 x PSVANE HIFI serie 845(grey plate) or
2 x Special customize for Laochen 845-SEC(Gold pins, black plate)
Output power : 25Wx2 (8 ohms),
Power transformer Power: 150W
Frequency response: 18Hz-35KHz
Output Impedance: 4 - 8 ohm
Total Harmonic Distortion: ≤ 1% (1kHz)
Input Impedance: 100K ohms
Input Sensitivity: 500mV--2000mV
SNR: 87db
Size (W × D × H): 430(W)×340(D)×280(H)mm
Net weight: 27 kg
Package weight: 30Kg
Input voltage for: AC 50-60hz /110-120v, 220v 230v-240V

Features:
Since 2 years preparation and testing , Laochen in the end release their latest flagship big power 845 tube amplifier
Use one high voltage transformer and one lower voltage transformer, 2 x power transformers independently supply amp, in order to ensure amplifier's power at the same time reduce the interference, in the absence of output feedback, the noise is controled within 1-1.5 millivolt, making the sound of the amplifier more broadly natural.
Using custom 6SN7 preamplifier,
PSVANE 300B-SE to drive PSVANE 845 high-power bile duct drive output transformer,
Between 300B and 845 is with stable efficient hi-fi coupling capacitors
Use of metal film resistors, ALPS potentiometer and hi-fi level capacitors,
signal amplification part use handmade scaffolding design to reduce the noise
The power supply part use thickened circuit board.
use for each high voltage and low voltage two inductance for filtering,
Use a delay of 30 seconds of the circuit, effectively protecting the life of the power tube.
Taiwan's high-quality dual-head dynamic VU meter,
Direct thermal triode 845 amp, both the performance of human voice and natural string and delicate, and also when dynamic time it's calm and magnificent,
Gold-plated connectors
3 inputs source with swither
Free offer tubes protection grille
All electronic component are high level quality
Manufactuer Laochen is most famous Chinese brand, they have 3 brands: "Oldchen" , "LaoChen", "Aiqin" , its EL34 series is already sold more 20000 copies.
