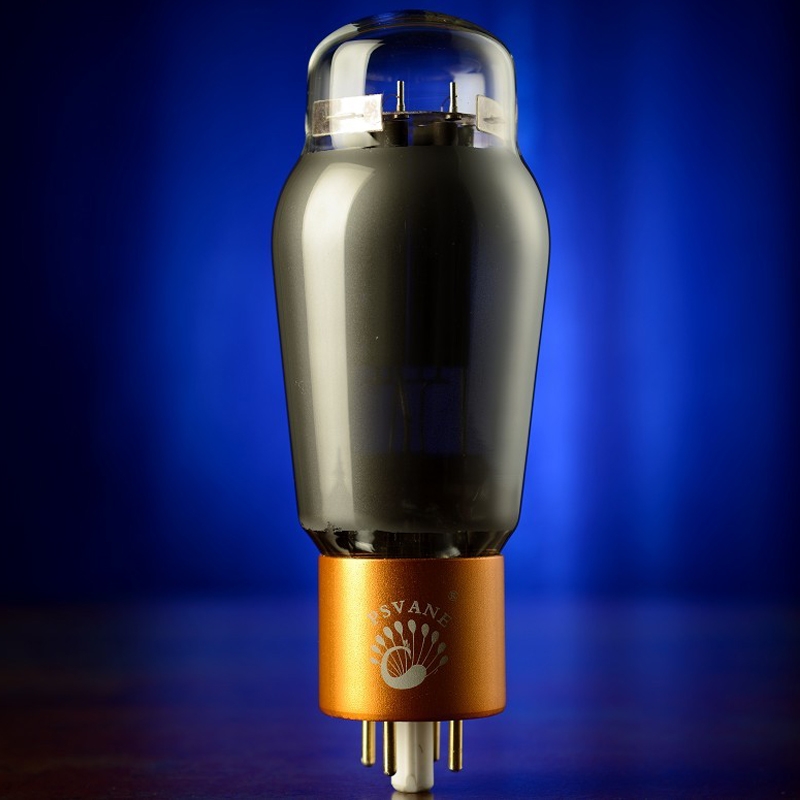

PSVANE 274B MARKII 274B-TII Vacuum Tube Rectifier Valve Upgradat 5U4G GZ34 5Z3P U52 5AR4 5Z4P Electron Tube

PSVANE 274B MARKII 274B-TII Vacuum Tube Rectifier Valve Upgradat 5U4G GZ34 5Z3P U52 5AR4 5Z4P Electron Tube

Rating: 5.0  |  0 reviews |  Write a review
Model: PSVANE 274B-TII
Shipping Weight: 3.5Kg Product Quantity: 9 Units in Stock
$240.99USD

Ship to: Shipping Costs :

Add to Cart:
PSVANE 274B-TII Collections Vacuum Tube T-Series rectifier 5Z3P Brand NEW


Features:

Glass shell eight feet directly heated full-wave rectifier，274B TII is very similar with 5U4G and 5Z3P, which can be replaced by each other.

Specifications:

Heater
Uf………………5V
If…………… 2.5A

Maximum Rating
anode inverse peak voltage……………1550V
anode peak current ………750mA

Recommend working condition

Anode supply voltage 2×500V
Each arm impedance 75Ω
load impedance 2000Ω
Filter capacitor 4μF
Rectifier current ≧220mA


Crystallized carbon grey coating inside the tube: This makes the TII series tubes to be a ‘grey bottle’, not a ‘black bottle’. The Crystallized carbon coating technology used in vacuum tubes have been patented by Psvane Audio in China and pending abroad. The benefit of the Crystallized Carbon coating will improve on absorbing random electrons inside the vacuum tube and dissipating heat more efficiently under extreme temperature, which will further enhance the stability of the vacuum tubes.

Teflon Base with Oxidized Aluminum Collar: instead of using fragile ceramic base, the TII series tubes use low conductance and highly durable Teflon materials for the base (no including the guide pin in the middle) to improve on anti-corrosion and anti-breakage. The brass-color sandy Oxidized aluminum collar around the Teflon base is anti-corrosion as well – no more finger prints and oxidization on the tube base with time of use, and your tubes will maintain a prestige condition for a long time.

Product logo engraved on the base, not printed on the glass enclosure: As many tube amps have tube sockets installed in various directions based on circuit layout, previously the printed logo on the black bottle tubes may face inconsistent directions. TII series have logo only engraved on the base so your amp will maintain a consistent and highly desirable appearance for all TII series tubes.

Higher quality glass enclosure: Higher quality glass is used for the new TII series to offer a better hand feel of the tubes, plus slightly heavier weight (approx 10% among all models) than previous series.

Last but not least – Sound Quality not a tiny bit less: TII series offers not a tiny bit less sound quality than the previous T-series. The new coating materials offer an even better music presentation in terms of minor 3D imaging improvement, layering and clarity. You will not lose anything in terms of sound by going for the latest and newest TII series if T-series are phased out and will gain all the greatly improved workmanship mentioned above.
