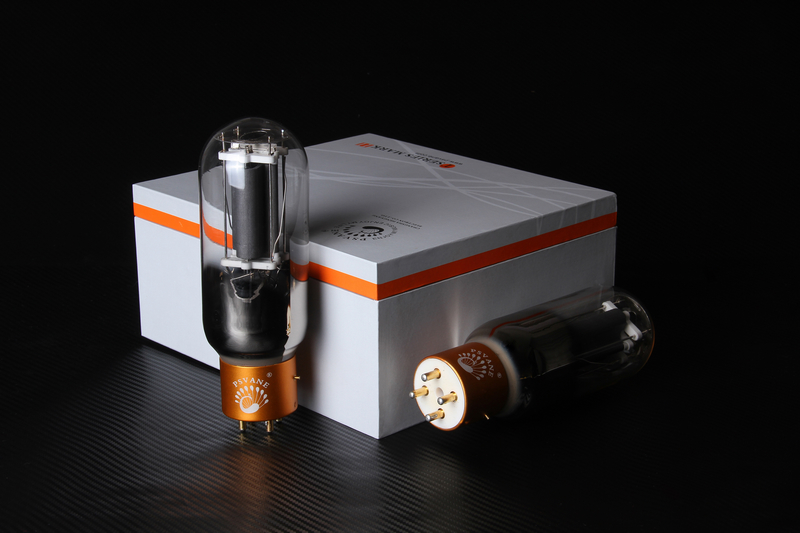

PSVANE 845-TII Series Collect Vacuum Tube Mark TII Precision Pairing Valve Replace 845 Vacuum Tube Matched pair

PSVANE 845-TII Series Collect Vacuum Tube Mark TII Precision Pairing Valve Replace 845 Vacuum Tube Matched pair

Rating: 5.0  |  0 reviews |  Write a review
Model: Psvane 845-T MK II
Shipping Weight: 4.5Kg Product Quantity: 6 Units in Stock
$325.99USD

Ship to: Shipping Costs :

Add to Cart:
PSVANE Vacuum Tube 845-T II T-Collection Grade Matched pair PSVANE 845-T Mark II brand new
The price is for 1 pair(2 pcs), if you buy 2pair(4 pcs), we will send the Factory full matched tubes to you.

1, PSVANE T-Collection series MK II use the Carbon Microcrystalline technology. Carbon Microcrystalline is a kind of very stable absorbent (material), and it has excellent heat transfer performance. Carbon Microcrystalline make up stabilization of the electrical performance inside of the Vacuum tube.

2, The PSVANE T-Collection series MK II tube socket is made with Teflon. It is very low electric inductivity, very low dielectric loss, and high breakdown voltage, high electric volume resistivity, high arc resistance. It has a lot of excellent features, it is waterproof and dampproof, withstand high temperature, low temperature resistance and Anti-corrosion. So, It enhances the stabilization and service durability of the vacuum tube.

3, The gray color of the PSVANE T-Collection series MK II tube is made with Aluminum oxidation, never discolor never color deterioration.

4, The feet of the PSVANE T-Collection series MK II tube are made with New formula Real gold plating. It Enhance the performance of the connection part of the contact. It makes the weak signal loss is reduced to a minimum.


Filament heating
U f : 10 V
If : 3.25 A
Limit rating
Anode voltage : 1250 V
Anode dissipation power : 75 W
Maximum signal output power : 150 W
Maximum anode current : 120 mA;
Electrode capacitance
Input capacitance : 6 PF
Output capacitor : 4.5 PF
The cross road capacitance : 14.5 PF
Static parameters
Ua : 1250 V
-Ug : 200 V
Ia : 80 mA
Gm : 3 mA / V
ri : 1.7 KΩ
u : 5
RL : 3.4 KΩ
Ug (pk) : 69 V
Pout : 15 W
Recommended work status (reference value)
Single tube A1 enlarge:
Ua : 1000 1000 1250 V
-Ug : 145 155 209 V
RL : 6 9 16 KΩ
Ia : 90 65 52 mA
Gm : 3.1 - mA / V
Ug (pk) : 110 148 V
ri : 1.7 1.9 2.1 KΩ
Pout : 24 21 24 W
Driving AB1 enlarge:
Ua : 800 1000 1000 1250 V
-Ug : 125 170 175 225 V
RL : 4.5 4.6 4.6 6.6 KΩ
Ia : 80 70 40 40 mA
Ug (pk) : 177 240 - V
Ia (mAx.sig) : 170 230 230 240 mA
Pout : 40 75 75 115 W
WER TURBO design;
PSVANE development team of the world's leading vacuum field, through clever design, we achieve the maximum density of the vacuum tube internal distribution of electron flow, compared to other same model vacuum tube, the T-series of the second generation of the sound quality has improved significantly, especially in the energy of the sound, dynamic plumpness competitors far behind.
In addition, in order to improve product texture, the aluminum oxide enriched to ensure that will never change color or fade timeless; each a second-generation PSVANE T series products are real gold plated tube needle with a new formula, in addition to further enhance the contact of the connection part of the performance, the weak signal outside to minimize the loss, given the magnificent sound.
