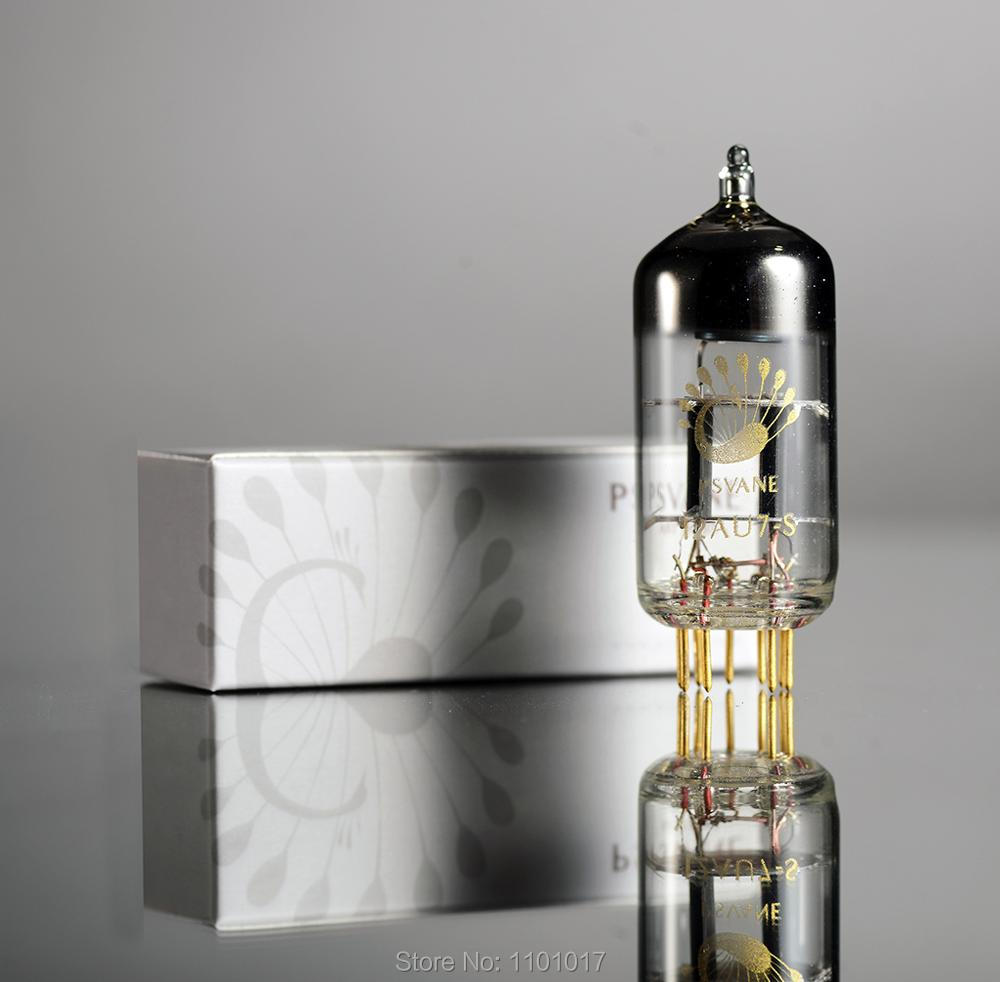

Psvane ART Series 12AU7-S HiFi vacuum tube Electronic Tube Matched Pair

Rating: 5.0 | 0 reviews | Write a review

Model: Psvane 12AU7-S

Shipping Weight: 1Kg Product Quantity: 9 Units in Stock

$82.99USD

Ship to: Shipping Costs : $32.58USD

Add to Cart:

Since some year expeirence for older 12ax7 TII serie tube, PSVANE R&D for their new inside architecture 12ax7, 12au7, 12at7 and EL84 tubes and named for S Arit Seire, these tube keep the older tube feature but and it's more musical than older TII serie and have a better parameter than old serie,
12AU7-S is small middle U double triode tube with nine feet
Used in amplifying circuit for push-pull amplifier inverter drive
filament heating:
UH-----------------6.3(parallel) 12.6(cascade) V
IH-------------------0.30 0.15 A

interelectrode capacitance
No.1 No.2
input capacitance----------1.6 1.6 PF
output capacitance---------0.4 0.32 PF
transfer capacitance----------1.5 1.5 PF

static parameter
Ua--------------100 250 V
—Ug-------------0 8.5 V
Ia---------------11.8 10.5 mA
Gm--------------3.1 2.2 mA/V
u--------------- 20 17
ri(approx)---------6.5 7.7 KΩ
Ug(approx)--------—11.8 —10.5 V
(when Ia=10uA)
Limit value when class A1 amplification (single triode)
anode voltage----------------300 V
anode dissipation power-------------2.75 W
The largest cathodic current-------------20 mA
Grid voltage ---------------—50 V
Between the filament cathode voltage (pk)--------±200 V

grid resistance:
Bias voltage---------------1 MΩ
Fixed voltage-------------- 0.25 MΩ
