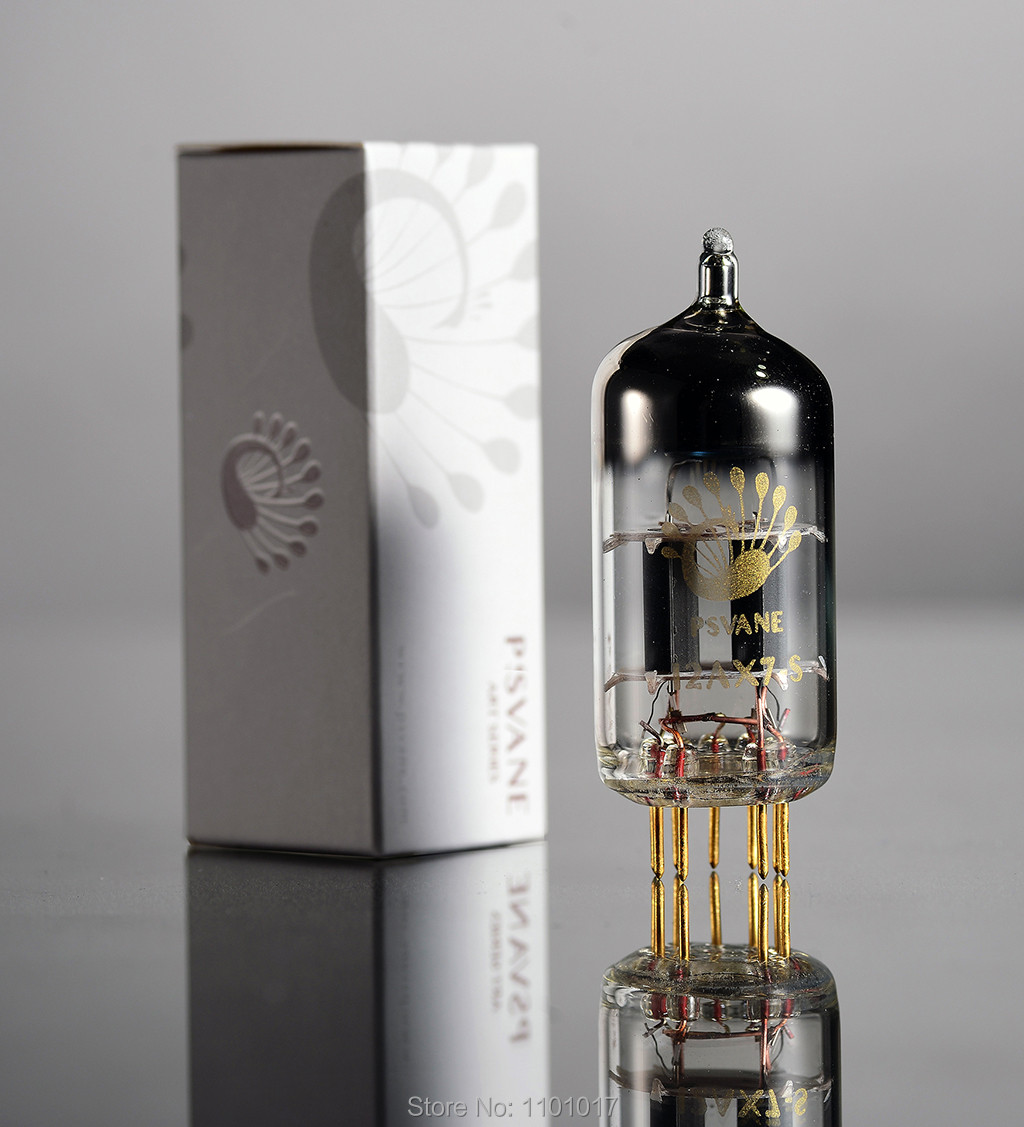

Psvane ART Series 12AX7-S HiFi vacuum tube Electronic Tube Matched Pair

Rating: 5.0 | 0 reviews | Write a review

Model: Psvane 12AX7-S

Shipping Weight: 1Kg Product Quantity: 9 Units in Stock

$88.99USD

Ship to: Shipping Costs : $32.58USD

Add to Cart:

Since some year expeirence for older 12ax7 TII serie tube, PSVANE R&D for their new inside architecture 12ax7, 12au7, 12at7 and EL84 tubes and named for S Arit Seire, these tube keep the older tube feature but and it's more musical than older TII serie and have a better parameter than old serie,
12AX7-S is high U &low noise double triode tube with small nine feet
Do the voltage amplification in the audio amplifier circuit, inverter drive push-pull amplifier

filament heating:
UH-----------------6.3(parallel) 12.6(cascade) V
IH-------------------0.30 0.15 A

interelectrode capacitance:
No.1 No.2
input capacitance----------1.6 1.6 PF
output capacitance----------0.46 0.34 PF
transfer capacitance----------1.7 1.7 PF

static parameter
Ua--------------100 250 V
—Ug-------------1 2 V
Ia---------------0.5 1.2 mA
Gm--------------1.25 1.6 mA/V
u----------------100 100
ri----------------80 62.5 KΩ

Limit value when class A1 amplification (single triode)
anode voltage----------------330 V
Grid load voltage--------------—50 V
Grid positive voltage-------------- 0 V
anode dissipation power-------------1.2 W
Between the filament cathode voltage (pk)--------±180 V
