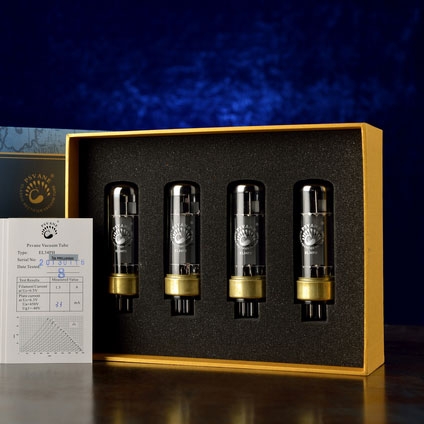

PSVANE EL34-PH EL34 Vacuum Tube Precision Matching Valve Replaces 6CA7/6P3P/5881Electronic Tubes Matched Quad(4)

PSVANE EL34-PH EL34 Vacuum Tube Precision Matching Valve Replaces 6CA7/6P3P/5881Electronic Tubes Matched Quad(4)

Rating: 5.0  |  1 reviews |  Write a review
Model: Psvane EL34-PH
Shipping Weight: 3.5Kg Product Quantity: 10 Units in Stock
$271.99USD

Ship to: Shipping Costs :

Version:


Add to Cart:
The Reproducing Classic Power Amplifier EL34PH of the top vacuum tube brand PSVANE perfectly reproduces PHILIPS iron pedestal EL34of 50s.
As the one of the most beautiful sound in pentode amps, EL34 was introduces to the market at the very beginning by MULLARD (PHILIPS’ sub company) in 1953. In the history of tube-producing industry, EL34 was designed very well and given infinite dynamism and strength on its pressure-resistant performance. Just like we always think of Western Electric’s WE300B when refer to 300B, as to the top representative products of EL34, it undoubtedly is the iron pedestal EL34 of PHILIPS produced in 50s.
That product of PHILIPS has perfect Frequency response performance, proper sound density and wonderful music analytic ability. It definitely is the king of EL34!
PSVANE always takes classic amp-reproducing as its own task. We have already successfully reproduced Western Electric 300B, 275A, 212 and other good tubes in recent two years and won the high reputation in market. Now, PSVANE, as well as the research team in Europe, successfully developed the PSVANE EL34PH, which is completely reproduced from the iron pedestal EL34 from Dutch PHILIPS. The price of our products is only 15% but show you a full top HIFI sound effect as its model (A new pair PHILIPS iron pedestal EL34 which contains 4pcs sells 15,000 RMB in the market). Besides, PSVANE give EL34PH its unique music feeling which is absolutely worth your listening.


filament heating
UH: 6.3 V
IH: 1.5 A

Limit rating
anode voltage: 800 V
The second grid voltage: 500 V
primary grid voltage: -100 V
anode dissipation power: 25 W
The second grid dissipation power: 8 W
cathode current: 150 mA

The first grid resistance
automatic bias: 0.7 MΩ
fixed bias: 0.5 MΩ
cathode voltage between the filaments: ±100 V
Glass shell temperature: 250 degree centigrade

interelectrode capacitance
input capacitance: 15.2 PF
output capacitance: 8.4 PF
transfer capacitance: 1.1 PF
capacitance between the filaments of the first grid: 1.0 PF
capacitance between the filaments of the cathode: 10 PF

static parameter
Ua: 250 V
Ug2: 265 V
Ug3: 0 V
-Ug1: 13.5 V
Ia: 100 mA
Gm: 11 mA/V
ri: 15 kΩ
μg1-g2: 11
