PSVANE MARKII KT88-TII Vacuum Tube Collection Version Replace EL34 KT120 KT100 6550 Audio Valve Electronic Tube Matched Quad(4pcs)

PSVANE MARKII KT88-TII Vacuum Tube Collection Version Replace EL34 KT120 KT100 6550 Audio Valve Electronic Tube Matched Quad(4pcs)

Rating: 5.0  |  0 reviews |  Write a review
Model: PSVANE KT88-TII Collection Quad
Shipping Weight: 4.5Kg Product Quantity: 10 Units in Stock
$298.99USD

Ship to: Shipping Costs :

Add to Cart:

PSVANE KT88-TII HIFI Audio amplifier Vacuum tube Best matched Quad(4pcs) 100% Brand New

1, PSVANE T-Collection series MK II use the Carbon Microcrystalline technology. Carbon Microcrystalline is a kind of very stable absorbent (material), and it has excellent heat transfer performance. Carbon Microcrystalline make up stabilization of the electrical performance inside of the Vacuum tube.

2, The PSVANE T-Collection series MK II tube socket is made with Teflon. It is very low electric inductivity, very low dielectric loss, and high breakdown voltage, high electric volume resistivity, high arc resistance. It has a lot of excellent features, it is waterproof and dampproof, withstand high temperature, low temperature resistance and Anti-corrosion. So, It enhances the stabilization and service durability of the vacuum tube.

3, The gray color of the PSVANE T-Collection series MK II tube is made with Aluminum oxidation, never discolor never color deterioration.

4, The feet of the PSVANE T-Collection series MK II tube are made with New formula Real gold plating. It Enhance the performance of the connection part of the contact. It makes the weak signal loss is reduced to a minimum.
Heater

Uf ……………6.3 V
If…………………………1.6 A
Maximum Rating
Ua……………………800 V
Ug2………………600 V
Ug1………………-200 V
Pa………………42 W
Pg2…………8 W
Ua+g2…………46 W
Ik……………………230 mA
Uh-k……………200 V
Tbulb…………………250 C
Rg1
with cathode bias
Pa+Pg2≤35W 0.47 MΩ
Pa+Pg2 > 35W 0.27 MΩ
with fixed bias
Pa+Pg2≤35W 0.22 MΩ
Pa+Pg2 > 35W 0.10 MΩ
Direct Interelectrode Capacitances
tetrode connection triode connection
input………16 9.3 PF
output ……… 12 17PF
grid to plate………1.2 7.9 PF

tetrode connection
Ua…………………… 250 V
Ug2……………………250 V
Ia ……………………140 mA
Ig2(approx) ………3 mA
-Ug1(approx)………15 V
Gm ……………………12 mA/V
ri ……………………12 KΩ
Ug1-g2……………… 8

ri ……………………670 Ω
u………………………8
triode connection
Ua.g2…………………250 V
Ia+g2…………………143 mA
-Ug1(approx)………15 V
Gm ……………………12 mA/V

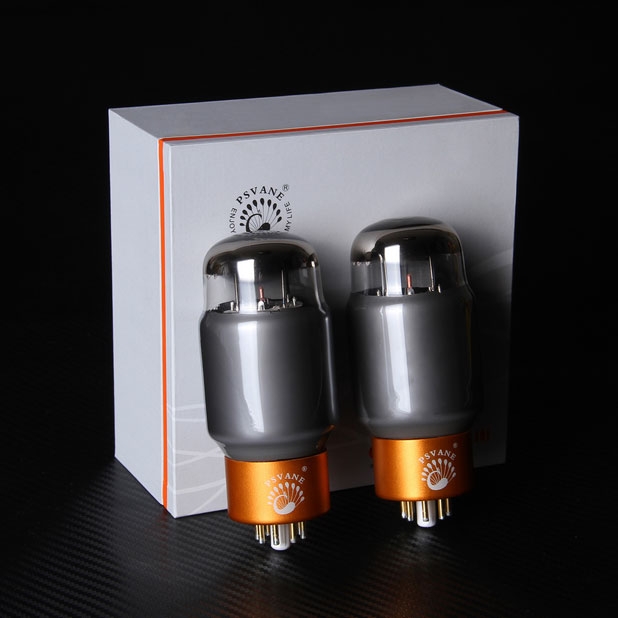

Crystallized carbon grey coating inside the tube: This makes the TII series tubes to be a ‘grey bottle’, not a ‘black bottle’. The Crystallized carbon coating technology used in vacuum tubes have been patented by Psvane Audio in China and pending abroad. The benefit of the Crystallized Carbon coating will improve on absorbing random electrons inside the vacuum tube and dissipating heat more efficiently under extreme temperature, which will further enhance the stability of the vacuum tubes.

Teflon Base with Oxidized Aluminum Collar: instead of using fragile ceramic base, the TII series tubes use low conductance and highly durable Teflon materials for the base (no including the guide pin in the middle) to improve on anti-corrosion and anti-breakage. The brass-color sandy Oxidized aluminum collar around the Teflon base is anti-corrosion as well – no more finger prints and oxidization on the tube base with time of use, and your tubes will maintain a prestige condition for a long time.

Product logo engraved on the base, not printed on the glass enclosure: As many tube amps have tube sockets installed in various directions based on circuit layout, previously the printed logo on the black bottle tubes may face inconsistent directions. TII series have logo only engraved on the base so your amp will maintain a consistent and highly desirable appearance for all TII series tubes.

Higher quality glass enclosure: Higher quality glass is used for the new TII series to offer a better hand feel of the tubes, plus slightly heavier weight (approx 10% among all models) than previous series.

Last but not least – Sound Quality not a tiny bit less: TII series offers not a tiny bit less sound quality than the previous T-series. The new coating materials offer an even better music presentation in terms of minor 3D imaging improvement, layering and clarity. You will not lose anything in terms of sound by going for the latest and newest TII series if T-series are phased out and will gain all the greatly improved workmanship mentioned above.


Some precautions about using high voltage power tubes:

Unlike other vacuum tubes such as KT88 or EL34, which typically run at 450V plate voltage, high voltage power tubes such as 845, 805 and 211 run at plate voltage 900V or even higher depending on your amp design. Due to the high voltage in the circuit, biasing an 845 / 805 or 211 amp improperly may expose you to lethal high voltage causing instant death. If you haven’t owned any tube before, we recommend you not to start with a 845 /805/211 tube amps until you get comfortable with maintaining a lower voltage tube amp such as EL34 / KT88 or 300B amps.

Always bias your amplifier by strictly following your amp manufacturer’s instructions. Do not bias the plate current over suggested reading (usually in mA) in any case. This will cause tube overheat, tube failure and burning out other parts inside your amp.
High voltage tube has maximum rating of plate heat dissipation (see specification link on each tube listing page). Do not run your amp at a plate current that could cause the tube plate turn red hot. When you start using a new tube, try it first in a room with dark light so that you can observe the plate color closely. If the plate turns red hot, turn down your amp bias immediately until the plate no longer show overheat symptom. Bias the two channel’s plate current readings to the same safe level for both. It’s not recommended to have two channels biased at different level.

Plate heat dissipation (measured in watts) = plate voltage (in Volt) x plate current (in mA) / 1000
For example, if a tube amp has plate voltage of 960V on the 845 tube by design, and the 845 tube has max plate heat dissipation rating of 75w, your maximum plate current bias reading should be 78mA. If the amp has plate voltage of 910V by design, your maximum plate current bias reading should be 82mA. It is not recommended run a tube constantly at its peak rating so ideally you should set your plate current bias at about 10% below the maximum. This will prolong your tube life and ensure a safe and long term enjoyment of your amp.

Although each tube amp has its designed plate voltage for tubes at a fixed input power voltage, a variation of more than 5% of your input power voltage will cause the plate voltage for tubes vary greatly (for example, swing from designed 910V to 950V or even higher). In such a case, your tube could be overheated and fail in a very short time. It’s strongly recommended to use a power conditioner properly designed for audio with your tube amp to reduce the possibility of such an accident and financial loss.

An excellent tube amp design along with poor selection of parts and poor production quality control could also cause your amp to overheat a tube and cause it fail prematurely. Always choose amplifiers made properly for your local voltage from a reputable reseller. In the past, we have seen many after-market modified Chinese tube amps which have been sold into North America with main transformers not designed for the right voltage, and cause not only inferior performance, but also tube failure or burning up components.

Last but not least, never leave your tube amp unattended for extended period of time. Never leave a 845/805/211 high voltage tube amp on without anyone in the room.

Due to the complicated feature of a tube amp’s design and user’s settings and maintenance vary greatly, tube manufacturer only warrant a vacuum tube for 30 days. If a tube has inherent manufacturer defect, it will show in the first 30 days of normal use and it will be covered by warranty. Improper usage including using in an amp not suitable for the tube or set bias too high or too low, input power spikes etc will result in tube failure prematurely – such incidence will not be covered by tube manufacturer’s warranty.

There is the full series(all tube type) of PSVANE Vacuum Tube below.
T-Collection Grade is high-end tubes of brand PSVANE.
