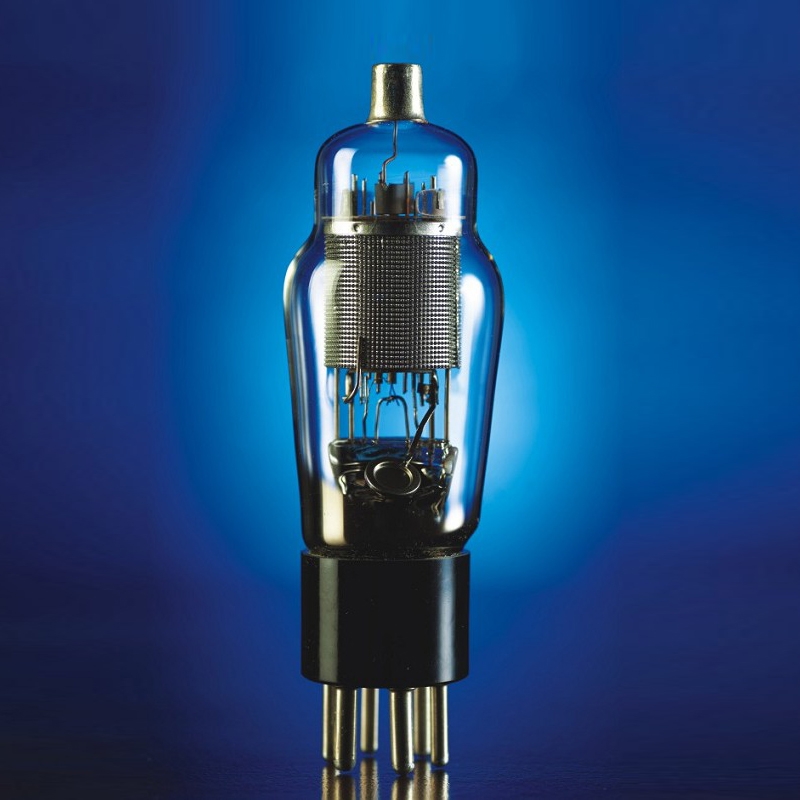

PSVANE WE310A Vacuum Tube 1:1 Copy WE310A for HIFI Audio Valve Electronic Tube Matched Pair

PSVANE WE310A Vacuum Tube 1:1 Copy WE310A for HIFI Audio Valve Electronic Tube Matched Pair

Rating: 5.0  |  0 reviews |  Write a review
Model: PSVANE WE310A
Shipping Weight: 3.5Kg Product Quantity: 9 Units in Stock
$190.99USD

Ship to: Shipping Costs :

Add to Cart:

Specification:
2.2 Electrical parameters ---- Rating rating unit
2.2.1 Capacitance between electrodes
2.2.1.1 Input Capacitance 15.5 PF
2.2.1.2 Output Capacitance 8.4 PF
2.2.1.3 Cross-circuit capacitance ≤ 1.5 PF
2.2.2 Typical operating parameters
2.2.2.1 Hot wire voltage 10 V
2.2.2.2 Hot wire current 0.36 A
2.2.2.3 Anode voltage 135 V
2.2.2.4 Curved gate voltage 135 V
2.2.2.5 Control gate voltage -3 V
2.2.2.6 Suppression of gate voltage 0 V
2.2.2.7 Anode current 5.6 mA
2.2.2.8 Curved gate current 1.5 mA
2.2.2.9 First gate reverse current ≤ 4 μA
2.2.2.10 transconductance 0.75 mA / V

2.4 Electrical Parameters - Absolute Maximum Ratings Min Max Units
2.4.1 Hot wire voltage 9 11 V
2.4.2 Anode voltage 300 V
2.4.3 Curtain gate voltage 300 V
2.4.4 Anode dissipation power 10 W
2.4.5 curtain gate dissipation power 4 W
2.4.6 Between the hot wire and the cathode voltage ± 200 V
2.4.7 Control gate circuit resistance 700 KΩ
