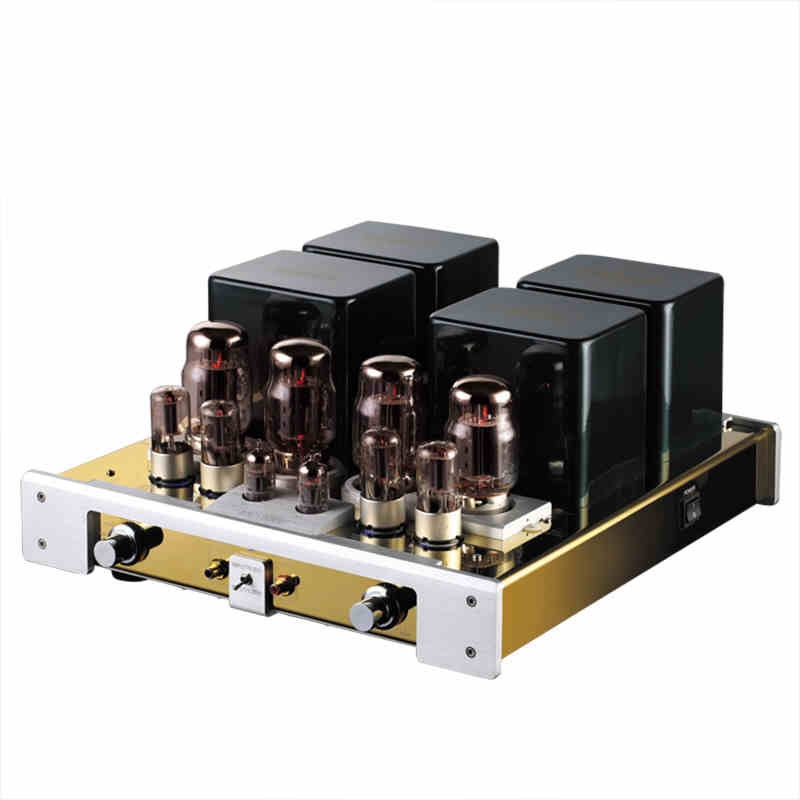

YaQin MC-100B KT88 Push-Pull Tube Amplifier UL/TR KT88/6N8P/12AX7B 50W*2

YaQin MC-100B KT88 Push-Pull Tube Amplifier UL/TR KT88/6N8P/12AX7B 50W*2

Rating: 5.0  |  0 reviews |  Write a review
Model: YAQIN MC-100B
Shipping Weight: 30Kg Product Quantity: 10 Units in Stock
$875.99USD

Ship to: Shipping Costs :

:


Add to Cart:
Features:
1.User-selected amplifier modes, UT (Ultra linear) mode provides greater output power and TR (Triode) mode does smooth and rich sound.
2.Class A push-pull power amplifier to reduce distortion;
3.User-selected pure post-stage and integrated modes;
4.Utilizes the audiophile capacitors and high quality metal precision resistors dedicated for audio frequency;
5.Output transformers manufactured with Japanese silicon steel sheet and oxygen-free enameled copper and high quality lacquer, which offer a wide dynamic range at full rated output;
6.Independent power supply for each channel.
7.Beautiful heavy duty chassis (stainless steel top, steel buttom) and aluminum panel and bezels;
8.Provides user adjustable bias, test points and tool to refine bias of the output tubes.

Specifications:
Tubes: KT88-98 × 4 (Output Tubes)
6N8P × 4 (Drivers and Cathode followers)
12AX7B × 2 (Voltage amplifiers)
Maximum Output:
30W per channel (8Ω and Triode Mode)
60W per channel (8Ω and Ultra linear Mode)
Output Jacks: Two channels with two groups gold plated jacks
Output Impedance: 4Ω and 8Ω
Input Jacks: Gold plated isolated RCA jacks, 4 groups (CD, DVD, Tape, and Tuner) on rear, and 1 group on front as the input of post-stage mode
Input Sensitivity:
0.25V in integrated mode (CD, DVD, and Tuner)
0.6V in pure post-stage mode (Front input connectors)
Distortion of Harmonic Wave: ≤1.5%
Frequency Response: 5Hz ~ 80KHz (-2dB
Signal-to-Noise Ratio: 90dB (A weight)
Supply Voltage: AC 115V, 60Hz
Power Consumption: 250W
Net Weight: 23kg
Shipping Weight: 30kg
Shipping Dimension: 60cm x 52cm x 36cm

Packages:
A YAQIN MC-100B unit
A Power cable
A Manual
