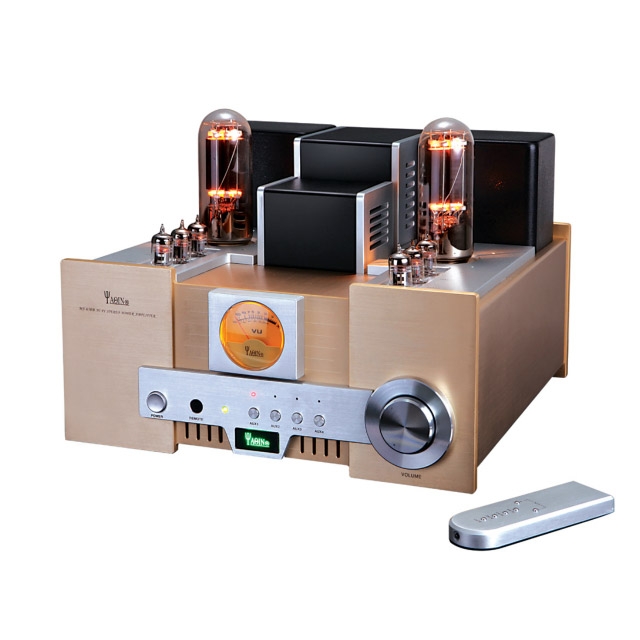

Features:
1.Pre-"SRPP" circuit, wide frequency response, low output impedance.
2.After stage amplifier for the low internal resistance of the power transistor (845), and for the CPI (A) single-ended amplifier,good sound quality.
3.After class to promote the circuit as "SRPP" circuit, and parallel twin-tube, wide frequency response, push strong.
4.Output transformers are imported from Japan Audio oriented silicon steel Z11 (0.35mm thick) and oxygen-free copper high strength enameled wire and special winding process hierarchical grouping production, wide frequency response of the machine, to ensure that the machine is high, medium and low-frequency tone well, transparent and powerful.
5.The machine adopts the best capacitors and precision gold blocking manufacturing abroad for factory audio enthusiast electrolytic and nonpolar (MKP), the main channel audio dedicated Imported from Japan (ALPS) and the volume of motor potentiometer, with quietmusic as background, low noise , no coloration, and durability characteristics.
6.The high voltage power supply for the automatic delay power control can effectively extend the tube life, and with full functionremote control.
7.Large VU meter for the volume indicator can be professional, to accurately reflect the volume size.
8.Each channel using 20000μf two channel machine a total of 40000μf large pond capacitor for DC to consider wave circuit power supply to the filament, so that the machine with extremely low noise, better sound quality.
Specifications:
Output Power: 15W + 15W（8Ω）
Load Impedance: 4Ω－8Ω
Maximum Power Consumption: 200W
Distortion + SNR: ≤1.5%（10W时）
Frequency Response: 10Hz-32KHz（-2dB）
Input Sensitivity: ≤0.3V
Vacuum tube: 845 X2 12AT7 X2 12AU7 X4
Power supply voltage: 110/220V 60Hz/50Hz
Dimensions(L x W x H): 420 x420 x300(mm)
Packing size(L x W x H): 470 x470 x350(mm)
Net weight: 36kg
Gross weight: 39kg
We ship the package within 1-3 days after the payment cleared.*
Shipping via DHL or UPS or FedEx or other express delivery takes 3-7 business days with a tracking number.
Shipping via China Post EMS or HK Post EMS usually takes 7-14 business days with a tracking number.
Shipping via China Post air mail or HK Post air mail usually takes 10-30 business days with a tracking number.
Faster payment, faster delivery.
Buyer pays any import taxes or customs duty.
All items are marked as low value on postal paper for customs to send that our buyers can save some customs fees.
Standard Return Policy:
If the item shows up defective or damaged, please email us immediately.
ONE-YEAR WARRANTY!!!
Brand new replacement with 14 days.
Defective situation must be reported to seller within 14 days upon receipt.
Returned item should be in its original box with all packing materials and shipped to us via a traceable shipping way.
We carefully inspect returned items upon receipt before issuance of refunds or exchanges.
Please allow up to 10 business days for us to process your return.
The customer needs to pay for the shipping costs for returning.
