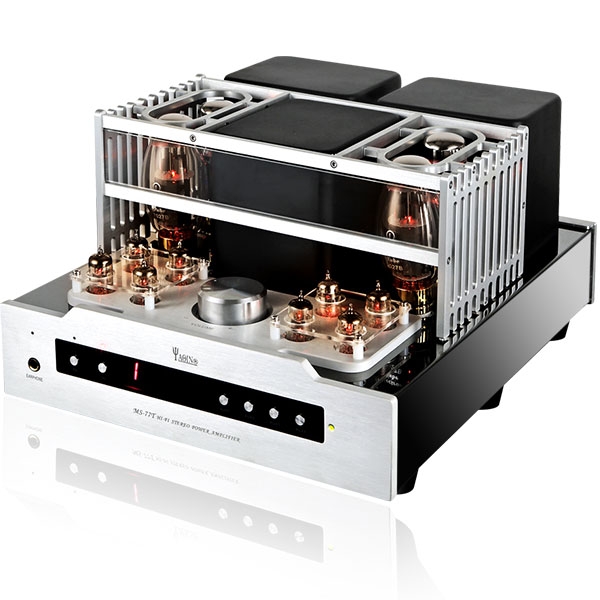

YAQIN MS-77T Push Pull Power Amplifier vacuum tube 7027B valve amplifier

YAQIN MS-77T Push Pull Power Amplifier vacuum tube 7027B valve amplifier

Rating: 5.0  |  0 reviews |  Write a review
Model: YAQIN MS-77T
Shipping Weight: 24Kg Product Quantity: 9 Units in Stock
$856.99USD

Ship to: Shipping Costs :

:


Rmote Control:


Add to Cart:
Features:
1. KT77-T radio tubes and push-pull circuit strong Output
2. The front stage and an inverter circuit used in all five 6J1 tube connected to three tubes
3. The high voltage power supply for the automatic power-on control delay
4. The ad hoc ultra-linear (UL) and tertiary (TR) connection capabilities
5. With remote control

Specifications:
Output Power: 40W + 40W (8Ω)
Input harmonic distortion: ≤0.5% (1KHz)
Frequency response: 5Hz-68KHz
SNR: ≥88dB (A-weighted)
Input Sensitivity: ≤0.23V
Tube: KT77-T × 4 6J1 × 8
Load Impedance: 4Ω - 8Ω
Maximum power consumption: 250W
Weight: 25Kg
Machine dimensions: length 430mm × width 325mm × height 210mm
Packing Size: Length 565mm × width 435mm × height 345mm

Packages:
A YAQIN MS-77T unit
A Power cable
A Manual
